Description
32.38" H x 15.13" W x 20.63" D
(82cm H x 38cm W x 52cm D)
Typically ships within 48 hours!
- U.L. approved for outdoor use, with three levels of weatherproofing in design
- Complete construction in durable 304 grade stainless steel
- Produces up to 10 lbs. of crescent-shaped ice in a day cycle
- Functional elegance with a sturdy towel bar handle in brushed stainless steel
- 32 inch height fits under lower ADA compliant counters
- Base cabinet provides convenient storage options

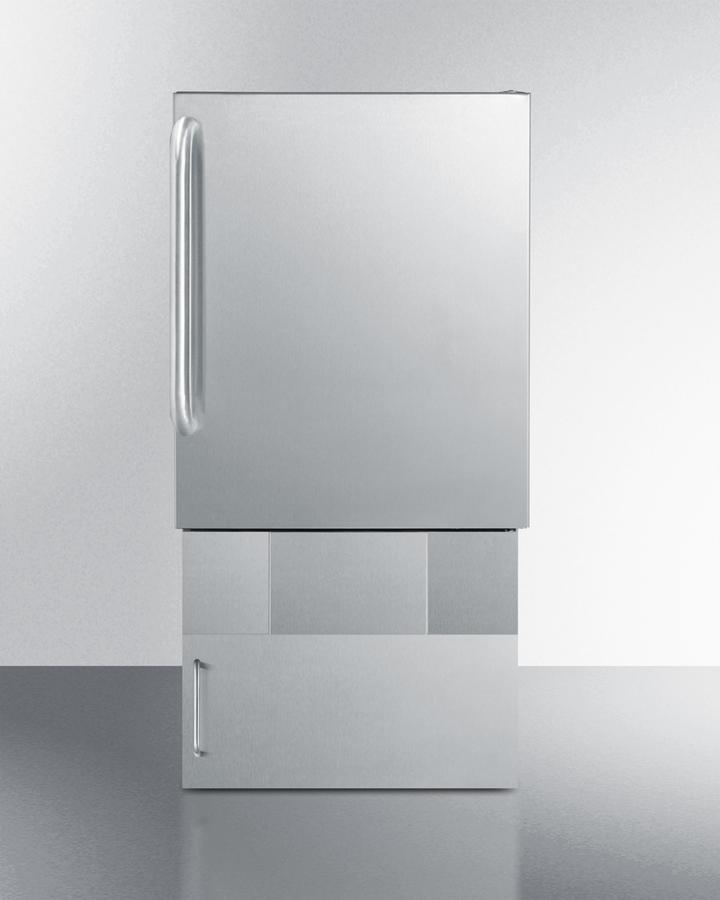

SUMMIT brings a convenient freeze to the outdoors with the BIM24OSBase32, a compact icemaker with U.L. approval for outdoor use and sized to fit under ADA compliant counters.
Fully wrapped in 304 grade stainless steel, the BIM24OSBase32 is designed to stand up to nature with elegant style. The weatherproof design includes a completely sealed back that protects all electrical components and SUMMIT's integrated Ground Fault Circuit Interrupter (GFCI) adds an extra level of protection and automatically resets the unit in the event of power failure.
The BIM24OSBase32 is designed for built-in installation under lower counters but can also function freestanding. It is mounted on a lower base that raises the unit height to be adjustable between 32" and 32 ½" high. This stainless steel cabinet offers convenient options for storing icemaker accessories and other outdoor utensils inside the drawer. The BIM24OSBase32 can produce up to 12 lbs. of crescent shaped cubes in a day cycle, storing it in a carefully insulated storage bin.
Operation does not require a drain. Our signature 12" towel bar handle completes the package.
Features
ADA compliant
32 inch height fits under standard ADA counters
U.L. approved for outdoor use
Weatherproof design rated safe for outdoor operation
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully finished cabinet
Allows the unit to be used freestanding
304 grade stainless steel construction
Durable exterior with lasting elegance
Professional towel bar handle
A curved stainless steel handle provides generous room for a comfortable grip
Insulated storage bin
Ice maintains solid crescent shape longer in cold storage bin
Sealed back
No exposed electrical components
Storage base
Stainless steel base includes drawer
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Specifications
| Overview |
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.38" (82 cm) |
| Width |
15.13" (38 cm) |
| Depth |
20.63" (52 cm) |
| Depth with Handle |
23.13" (59 cm) |
| Depth with door at 90° |
34.25" (87 cm) |
| Capacity |
1.0 cu.ft. (28 L) |
| Defrost Type |
Manual |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Amps |
1.5 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
105.0 lbs. (48 kg) |
| Shipping Weight |
110.0 lbs. (50 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Icemaker |
| Door Swing |
RHD |
| Reversible |
No |
| Daily Ice Production |
12.0 lbs. (5 kg) |
| Ice Storage Capacity |
12.0 lbs. (5 kg) |
| Ice Shape |
Crescent |
| Number of Ice Cube Sizes |
1 |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.63 oz. |
| Interior Height |
11.75" (30 cm) |
| Interior Width |
10.0" (25 cm) |
| Interior Depth |
13.0" (33 cm) |
| Level Legs |
2 |
