Kessick Somm 3 Pole Parallel Shelf with 2 Display Rows and Base Chevron Cabinet
Kessick Somm 3 Pole Parallel Shelf with 2 Display Rows and Base Chevron Cabinet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Kessick Somm 3 Pole Parallel Shelf with 2 Display Rows and Base Che...
Kessick · Somm Series · SV25
268 bottles. Three poles. Parallel shelf, two display rows, and base chevron cabinet.

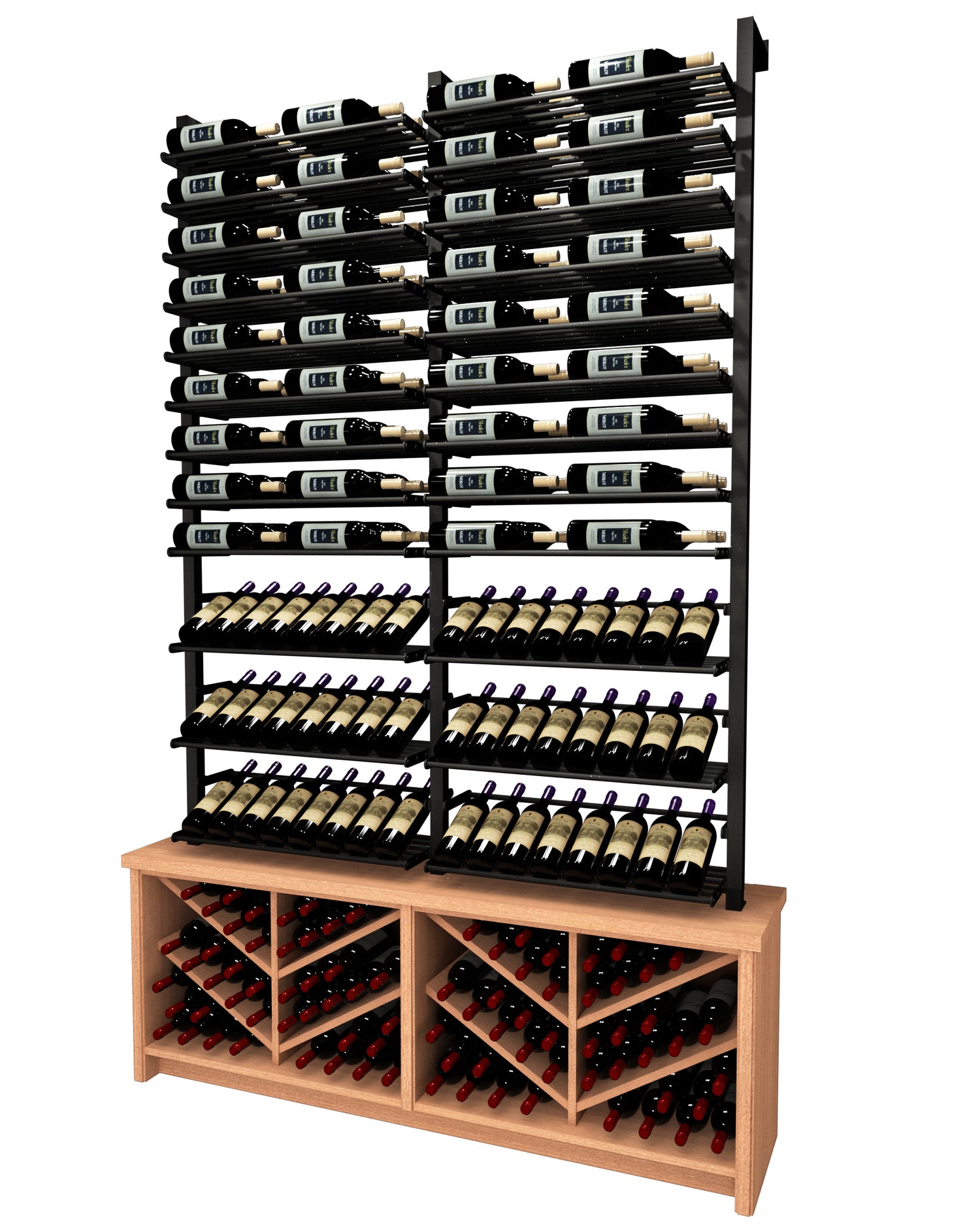

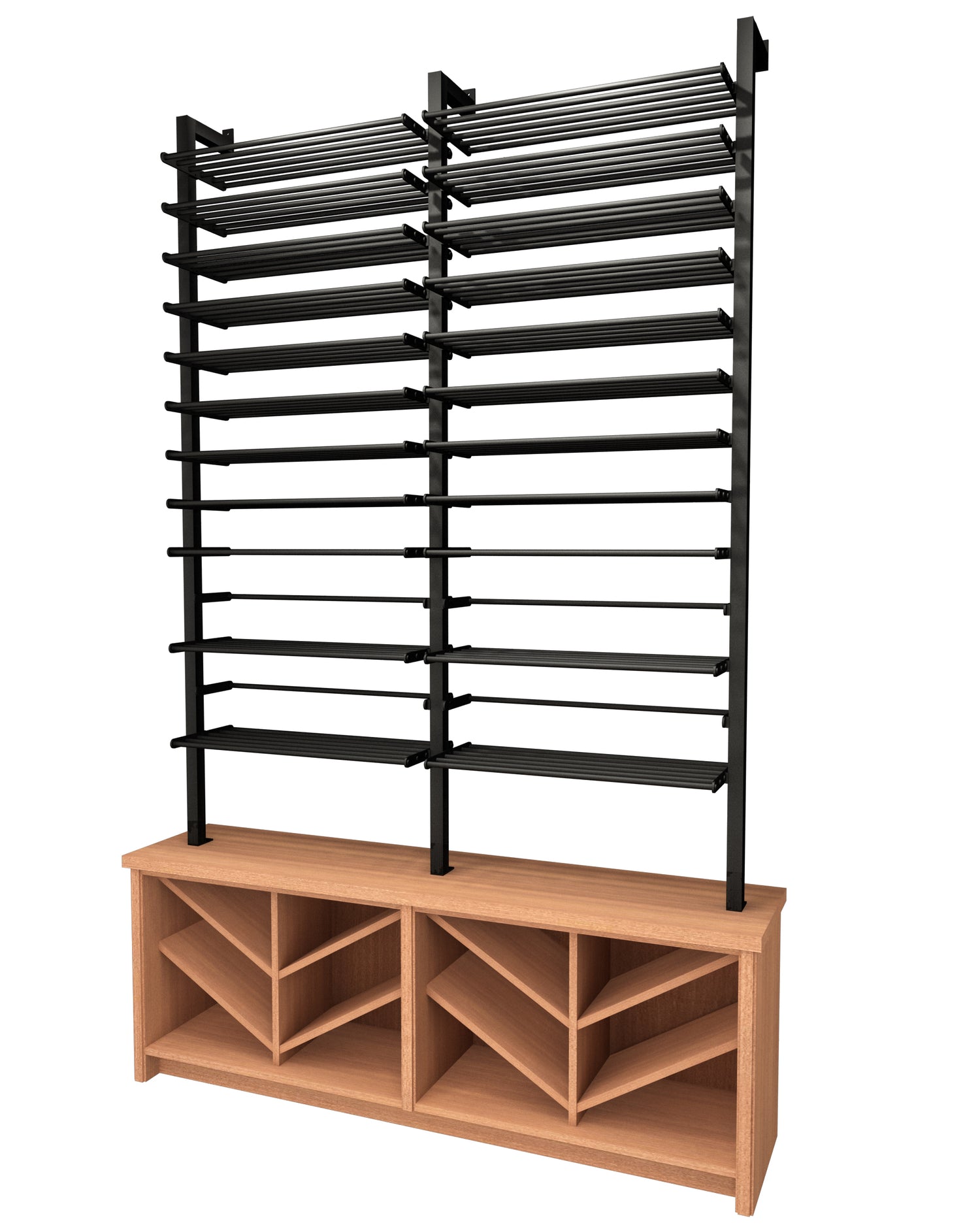

The Kessick Somm Vignette Design SV25 is a large-scale floor-to-wall wine display system spanning 66.5 inches wide and holding up to 268 bottles. Built on three concave aluminum poles across two columns, it combines parallel shelf label-forward storage and two Display Rows at the top with an elegant Base Chevron Cabinet spanning the full width at the bottom. The chevron design adds a striking diamond-pattern visual element to your wine wall while providing ample storage for loose bottles or wood cases. The base cabinet measures 65.5 inches wide by 24.5 inches tall and is available in White Oak or Walnut with a selection of stain and finish options.
Built from heavy-wall anodized aluminum with shelves that ship fully assembled, it is designed for straightforward installation using standard tools and manufactured in the USA. Designed for wall-mount installation. Wall Connect height: 103". Capacity based on standard 750ml bottles. Wood species and finish selections for the base cabinet are available at a price upgrade — contact us for details.
Features & Construction
Concave aluminum poles
Two 1-3/8" concave-face, thick-walled anodized aluminum poles with proprietary internal spline. Pre-cut and pre-drilled to your exact configuration for a streamlined installation.
Three Poles, Two Display Rows + Base Chevron Cabinet
Three concave aluminum poles across two columns create a full wall-width display. Two Display Rows let you spotlight select bottles at multiple heights. The full-width Base Chevron Cabinet adds a striking diamond-pattern element while providing ample storage for loose bottles or wood cases — available in White Oak or Walnut at a price upgrade.
Adapter Plate system
Pre-installed on each pole. Each bracket attaches with two hand-tightened machine screws — no banding, no specialty tools required. Designed for a secure, stable connection with straightforward installation.
Wall or ceiling install
Designed for both wall-mount (Wall Connect 94") and ceiling-mount (Ceiling Connect 96") installation. Telescoping ceiling connectors included for floor-to-ceiling configurations.
Modular & expandable
Expand the system by adding poles side by side to create a complete wine wall. Compatible with the full Somm accessory line — wood countertops, stemware racks, drawers, wine bins, and rolling library ladders.
LED lighting (optional)
Optional LED lighting can be integrated into select configurations and surrounding casework. Contact us for details.
Parallel Wine Shelf
Designed for maximum label view. Fits Half Bottles, 750ml, Burgundy, Bordeaux, Champagne, and Magnum.
Parallel Rods
Black, Silver, Gold
Brackets
Metal, Acrylic, and Wood
Label Forward Storage
1, 2, and 3 Bottles Wide
1, 2, 3, and 4 Bottles Deep
All Parallel Shelves are shipped as fully assembled units, fastened with screws.
Parallel Rods are a unique Kessick aluminum extrusion with a proprietary internal spline. This allows them to span greater widths with minimal deflection and they can be easily cut to custom lengths without deburring or the need of a threaded insert.
Display Row
Reveal Options
Low Reveal, Adjustable
Medium Reveal
High Reveal
Parallel Rods
Black, Silver, Gold
Brackets
Metal, Acrylic, and Wood
The Somm Display Row is designed to be utilized for multiple display angles from low reveal to maximum view. Additional bottles can be stored behind or in front of angled bottles.
All Parallel Shelves are shipped as fully assembled units with screws. No installation banding is needed.
Somm Accessories
The Somm Series can be expanded and complemented with a full range of accessories.
Available Accessories
Drawers
Cigar Humi-drawer
Countertops
Stemware Shelves — optional large bottle display
Wine Bins — Parallel or Wood Construction
Rolling Library Ladders — Metal or Wood
Specifications
| SKU | SV25 |
| Configuration | 3 Pole, 2 Column, Parallel Shelf with 2 Display Rows and Base Chevron Cabinet |
| Display style | 3 Pole Parallel Shelf with 2 Display Rows and Base Chevron Cabinet |
| Dimensions | 66.5" W × 103" H × 15" D — Base Cabinet: 65.5" W × 24.5" H |
| Bottle capacity | 268 bottles — based on standard 750ml bottles |
| Connect type | Wall Connect — 103" |
| Pole | 1-3/8" concave face, thick-walled anodized aluminum |
| Bracket | Metal or Acrylic. Wood available (price upgrade) |
| Bottle compatibility | Half (375ml), 750ml Bordeaux, Burgundy, Champagne, Magnum (1.5L) |
| Installation | The Somm poles include pre-drilled pilot holes tailored to your specific design. A pair of machine screws fastens a diverse range of Somm brackets, which only require hand tightening for a robust and secure fit. |
| Expandable | Yes |
| LED lighting | Optional — contact us for details |
| Origin | Designed & manufactured in the USA |
Finish Options
Bracket Material
Pole Finish
Black
Silver
Shelf Finish
Black
Silver
Gold
Wood Options
These options are available at an upgrade price. Base price starts at $9,260. Contact us for a complete quote.
White Oak
Unfinished
Clear
Walnut Stain
Espresso Stain
Gray Stain
Walnut
Unfinished
Clear
Walnut Stain
Espresso Stain
Gray Stain
Not sure which configuration is right for your space? Request a quote and we'll help you find the perfect fit.
