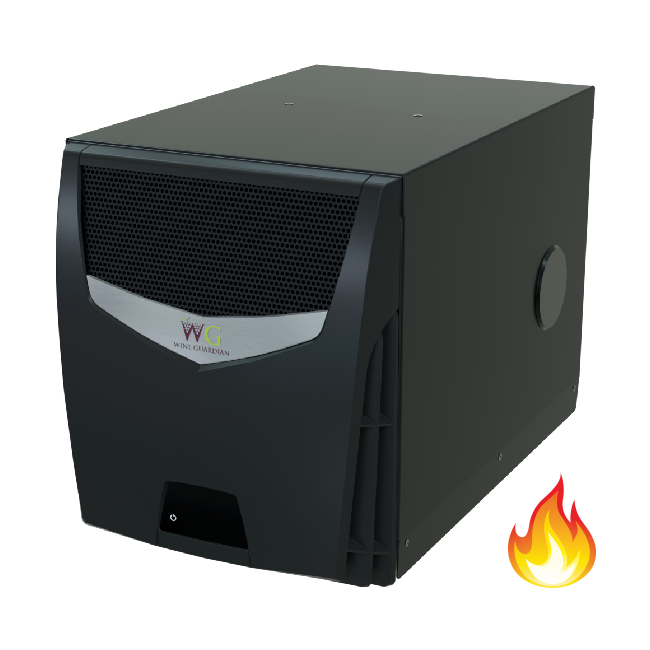

This through-the-wall wine air conditioning unit with a heater is ideal for smaller residential wine cellars. Heating is beneficial for wine rooms in places where temperatures around the wine room may drop below-desired storage conditions.
The TTW018H is a 60Hz system, which is standard in most of North America (incl. USA & Canada). Unit capacity is 981 – 1845 BTUH.
This through-the-wall wine air conditioning unit with a heater is ideal for smaller residential wine cellars. Let one of our trained technicians assist to determine if the TTW018H is suitable for your wine storage application. The TTW018H is easy to install and can be installed on your own without the support of a contractor. The max capacity of the TTW018H unit is 1,755 BTU/h (0.51 Kilowatts).
The Wine Guardian heater option acts to warm the air entering the wine cellar in order to maintain a constant set point.
The electric heat option includes the following:
-500-watt integral heater
-Thermal overload protection device and controls
The Wine Guardian through-the-wall unit with a heater will either cool or heat the air, but it is not designed to do both at the same time. The Wine Guardian electric heat option must be specified at the time of order and installed at our factory prior to shipment.
If your wine cellar features one or more glass walls and you are close to the maximum recommended BTU/h, consider purchasing the D025 with heater. Always run complete heat load calculations before purchasing a wine cellar air conditioning unit.
US Patent No. D634760 S
Wine Guadian TTW018H Options & Upgrades
- Freestanding Humidifier for use with Wine Guardian Units
- Remote Interface Controller and Thermostat
- Remote Sensor for Wine Guardian® Wine Cellar Cooling Unit
Wine Guardian TTW018H Specifications
| Line Frequency |
60 Hz
|
| Model |
TTW018H
|
| Capacity |
981 – 1950 BTU
|
| Volume |
100 – 1200 ft³
|
| Length |
25"
|
| Width |
14.25"
|
| Height |
15.88"
|
| Weight |
62 lbs
|
| Electrical |
115/1/60
|
Wine Guardian TTW018H Options
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
Wine Guardian TTW018 Documents and Resources
Through-the-wall Product Brochure
Through-the-wall Manual (English)
Through-the-wall Quick Start Installation Guide (Multi-Language)
Through-the-wall Specifications Sheet
Through-the-wall Warranty
Through-the-Wall CAD Drawings (PDF)
