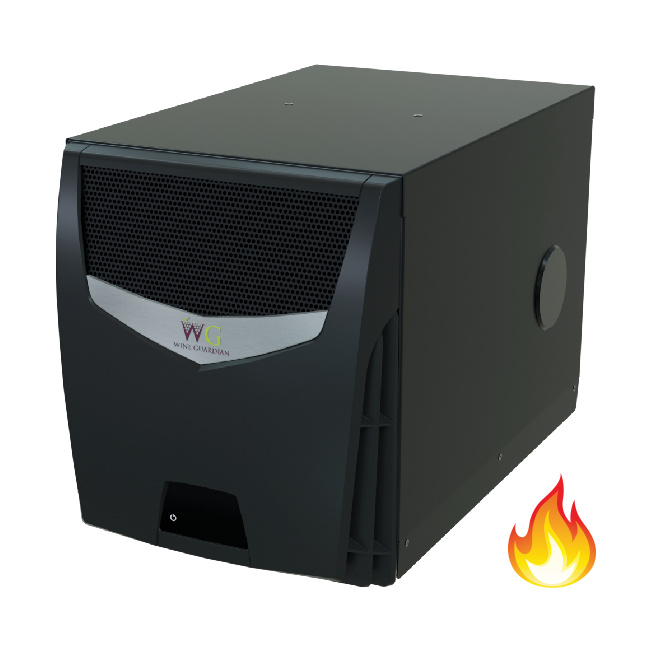

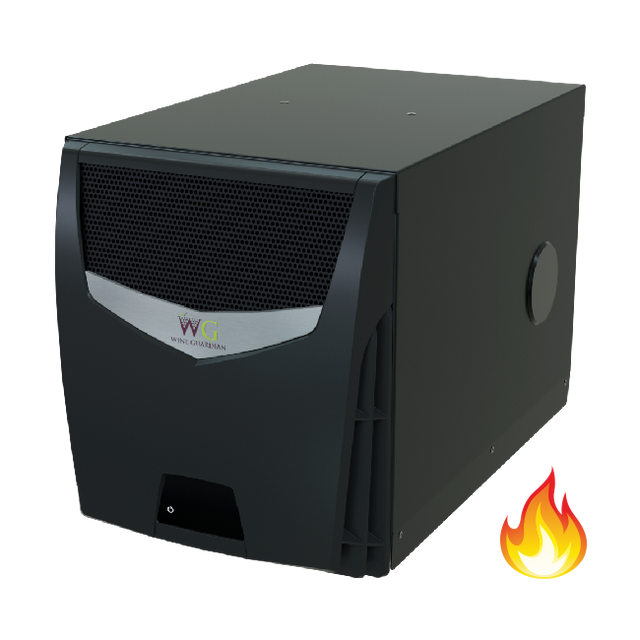

Wine Guardian® TTW009H Through the Wall Wine Cellar Cooling Unit with Heater
Wine Guardian® TTW009H Through the Wall Wine Cellar Cooling Unit with Heater is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Wine Guardian® TTW009H Through the Wall Wine Cellar Cooling Unit wi...
Wine Guardian Key Features
Professional-grade technology trusted by wine collectors worldwide
Aerospace Engineering
25+ years of proven environmental control expertise from Air Innovations, trusted for aerospace and military applications.
Precision Humidity Control
Integrated humidifiers maintain perfect 60% humidity to prevent cork oxidation and protect your valuable wine investment.
Most System Options
More models, capacities, and configurations than any other manufacturer worldwide - ensuring the perfect solution for your cellar.
This Through-The-Wall wine conditioning system with an electric heater is ideal for small residential wine cellars in colder climates in which the wine cellar dips below proper storage conditions.
The TTW009H is a 60Hz system, which is standard in most of North America (incl. USA & Canada). Unit capacity is 250 – 999 BTUH.
This TTW009H wine conditioning system is ideal for small residential wine cellars. Let one of our trained technicians assist to determine if the TTW009H is suitable for your wine storage application. This unit is also easy to install and can be installed on your own without the support of a contractor. The max capacity of the TTW009H is 981 BTU/h (0.29 Kilowatts).
The Wine Guardian heater option acts to warm the air entering the wine cellar in order to maintain a constant set point.
The electric heat option includes;
-500-watt integral heater
-Thermal overload protection device and controls
The Wine Guardian will either cool or heat the air, but it is not designed to do both at the same time. The Wine Guardian electric heat option must be specified at the time of order and installed at our factory.
US Patent No. D634760 S
Wine Guadian TTW009H Options & Upgrades
- Freestanding Humidifier for use with Wine Guardian Units
- Remote Interface Controller and Thermostat
- Remote Sensor for Wine Guardian® Wine Cellar Cooling Unit
Wine Guardian TTW009H Specifications
| Model |
TTW009H |
|---|---|
| Line Frequency |
60 Hz |
| Capacity |
250 – 1090 BTU |
| Volume |
50 – 600 ft³ |
| Length |
25" |
| Width |
14.25" |
| Height |
15.88" |
| Weight |
60 lbs |
| Electrical |
115/1/60 |
Wine Guardian TTW009H Options
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
Wine Guardian TTW009 Documents and Resources
Through-the-wall Product Brochure
Through-the-wall Manual (English)
Through-the-wall Quick Start Installation Guide (Multi-Language)
