Wine Guardian® Pro SP25 Ducted Split Specialty Cooling HVAC System - Sentinel Series

Name: Wine Guardian® Pro SP25 Ducted Split Specialty Cooling HVAC System - Sentinel Series
Brand: Wine Guardian
SKU: 99H0204-20 + 99H0294-11
Price: 7090.0 USD
Availability: InStock

by Wine Guardian

Custom Quote Button

The SP25 Pro ductable split wine conditioning system is ideal for specialty cooling applications.

It is a 60Hz system, which is standard in most of North America (incl. USA & Canada). The unit has a max capacity of 4,140 BTU/H.

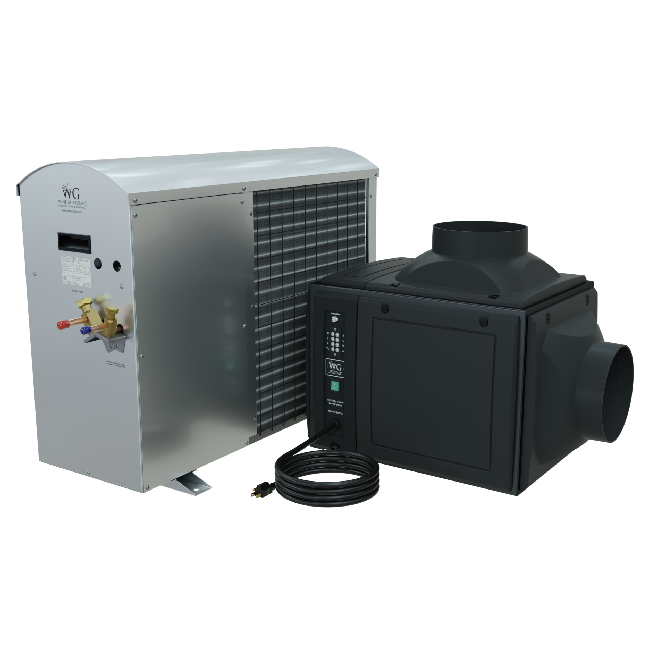

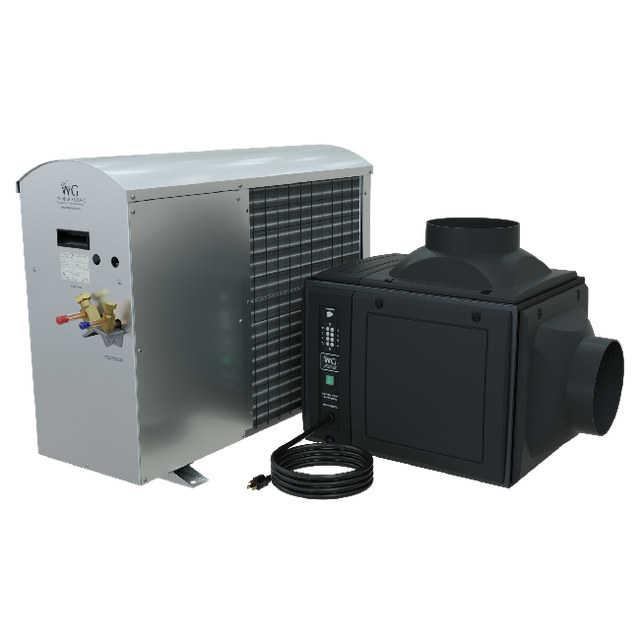

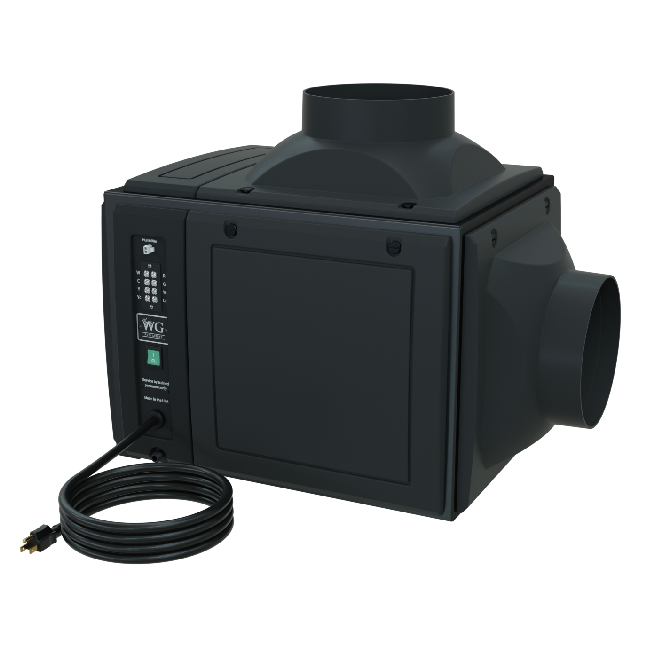

The SP25 Pro Ductable Split wine cellar cooling system for specialty cooling applications like fur storage, instrument storage, and computer closets is a perfectly-paired condensing unit and evaporator section. This wine cooling system has a max capacity of 4,140 BTU/H. The SP25 is compatible with modern smart thermostats and features enhanced refrigeration controls.

*Patent Pending

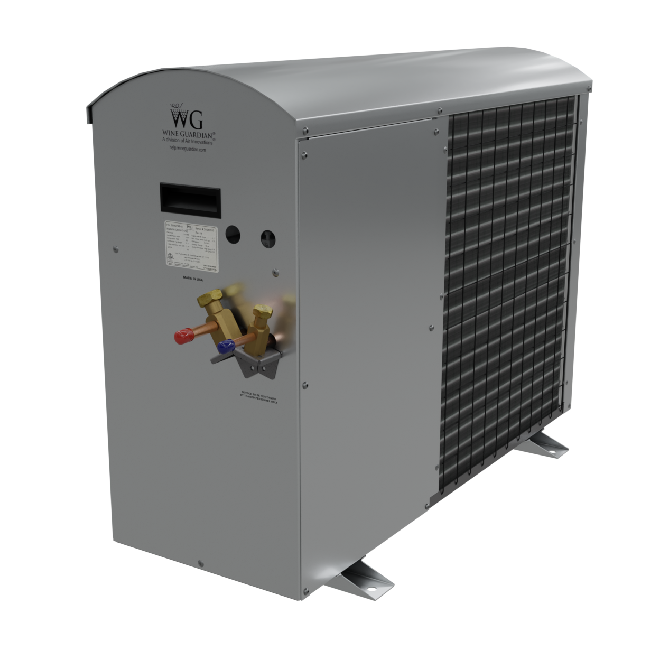

The condensing unit is patented. US Patent No. D791295.

Wine Guardian SP25 Options & Upgrades

Remote Sensor for Wine Guardian® Wine Cellar Cooling Units
Sentinel Series Integrated Humidifier for Models D025, DP25, DS025, and SP25
Sentinel Series Duct Collar for Models D025, DP25, DS025, SP25
Flexible Ductwork | 8 inches (20.3cm)
Sentinel Series Duct Collar Kit for Models D025, DP25, DS025, SP25
Remote Interface Controller and Thermostat

Wine Guardian SP25 Specifications

Model	SP25
Line Frequency	60 Hz
Capacity	1000 – 3485 BTU
Volume	250 – 2000 ft³
Length	21.43" 34" (condenser)
Width	16.6" 12.3" (condenser)
Height	15.56" 26.07" (condenser)
Weight	35 lbs 75 lbs (condenser)
Electrical	115/1/60 208-230/1/60 (condenser)

Wine Guardian SP25 Options

EXTREME CLIMATE PROTECTION BUNDLE

For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).

For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.

HEATER

Protects wine cellars from dangerously low temperatures. Adjustable activation from 2 - 6°F (-17 - -14°C) below your setpoint.

INTEGRATED HUMIDIFIER

Humidifiers help ensure perfect long-term wine storage conditions by adding humidity back into your wine space. The Integrated Humidifier attaches directly to your Wine Guardian cooling system using the same power source and remote controller.

FREESTANDING HUMIDIFIER

The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
