Wine Guardian® Pro SP200 Ducted Split Specialty Cooling HVAC System

Custom Quote Button

The SP200 Pro ducted split specialty cooling HVAC system is ideal for large specialty storage applications.

It is a 60Hz system, which is standard in most of North America (incl. USA & Canada). The unit has a max capacity of 15,700 BTU/H.

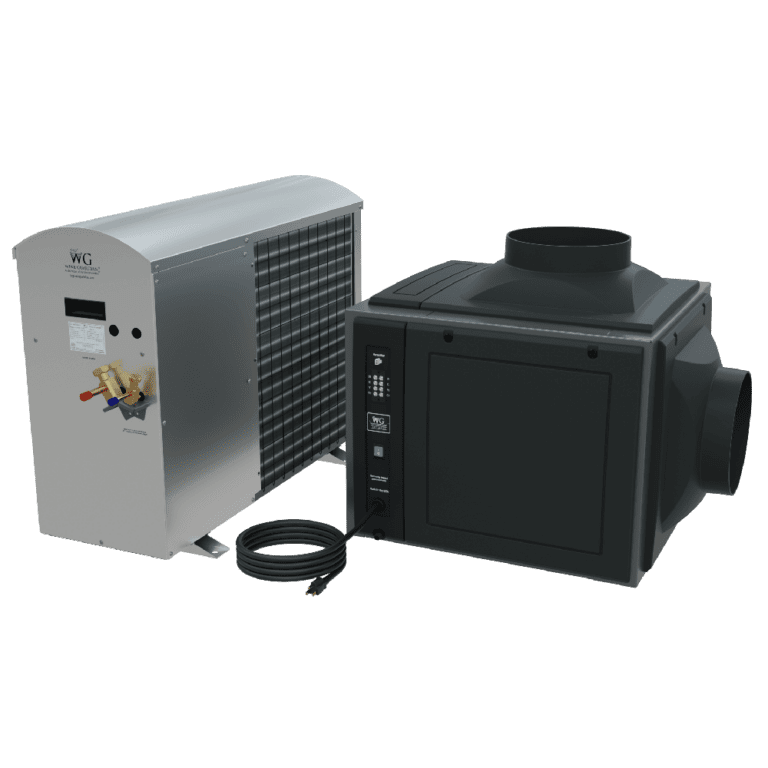

The SP200 Pro ducted split specialty cooling HVAC system for large specialty storage applications is a perfectly-paired condensing unit and evaporator section that comes standard with features such as low ambient protection. Optional features include the Extreme Climate Protection bundle and the electric heater. This wine cooling system has a max capacity of 15,700 BTU/H. The SP200 is compatible with modern smart thermostats and features enhanced refrigeration controls.

The condensing unit is patented. US Patent No. D791295.

Wine Guardian SP200 Options & Upgrades

  • Remote Sensor for Wine Guardian® Wine Cellar Cooling Units

  • Sentinel Series Integrated Humidifier for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200

  • Sentinel Series Duct Collar for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200

  • Flexible Ductwork | 10 inches (25.4cm)

  • Sentinel Series Duct Collar Kit for Models D050, D088, DP50, DP88, DS050, DS088, SP50, SP88

  • Remote Interface Controller and Thermostat

Wine Guardian SP200 Specifications

Model

SP200

Line Frequency

60 Hz

Capacity

8000 – 15785 BTU

Volume

1500 – 7000 ft³

Length

23.8"
34" (condenser)

Width

25"
12.3" (condenser)

Height

19.7"
26" (condenser)

Weight

69 lbs
120 lbs (condenser)

Electrical

208-230/1/60



Wine Guardian SP200 Options

 EXTREME CLIMATE PROTECTION BUNDLE

For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).

For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.

 HEATER

Protects wine cellars from dangerously low temperatures. Adjustable activation from 2 - 6°F (-17 - -14°C) below your setpoint.

 INTEGRATED HUMIDIFIER

Humidifiers help ensure perfect long-term wine storage conditions by adding humidity back into your wine space. The Integrated Humidifier attaches directly to your Wine Guardian cooling system using the same power source and remote controller.

 FREESTANDING HUMIDIFIER

The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.

Wine Guardian SP200 Documents and Resources

Pro Ducted Split Product Brochure

Pro Ducted Split Specifications Sheet

Pro Ducted Split Manual

Pro Ducted Split Quick Start Installation Guide

Pro Ducted Split Warranty

Pro Ducted Split CAD Drawing (PDF)

Condenser CAD Drawing (PDF)
