Introducing Dual Zone MAX, our most flexible Dual Zone wine cellar.
Dual Zone MAX technology gives you the ability to set both temperature zones to the same temp allowing you to MAXimize your storage & aging space. Or use your Dual Zone MAX as a traditional Dual Zone cellar. Our innovative 80/20 split Dual Zone MAX give you the MAXimum space to store & age your collection while the top zone can be set to the perfect service temperature for your white, rosé & sparkling wines.

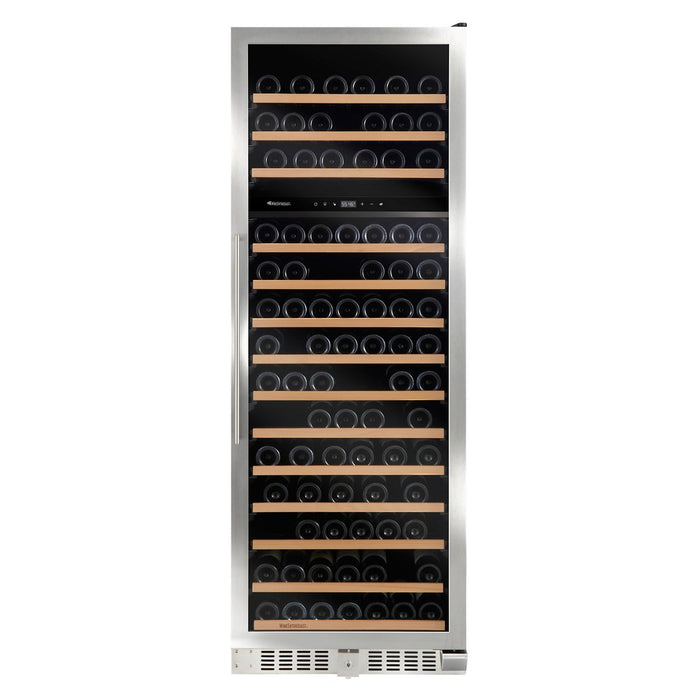

The Wine Enthusiast N'FINITY LX wine cellar is perfect for your kitchen, pantry, family room or home bar, it can be free standing or built-into cabinetry. The dual zone wine cellar is designed for storage and service of your favorite wines keeping them at the perfect temperatures. It holds up to 168 bottles* in our best-in-class shelving which accommodates every size bottle in your collection.
PERFECT FOR STORAGE AND SERVICE
Ideal for serving and storing your favorite red, white and sparkling wines
DIGITAL CLIMATE CONTROL
Intuitive touchscreen controls to easily set desired temperatures
- Upper Zone for White and Sparkling Service (41°F- 66°F)
- Lower Zone for Red and White Storage (41°F- 66°F),or
- Use Both Zone for Red and White Storage
MAXIMUM STORAGE CAPACITY

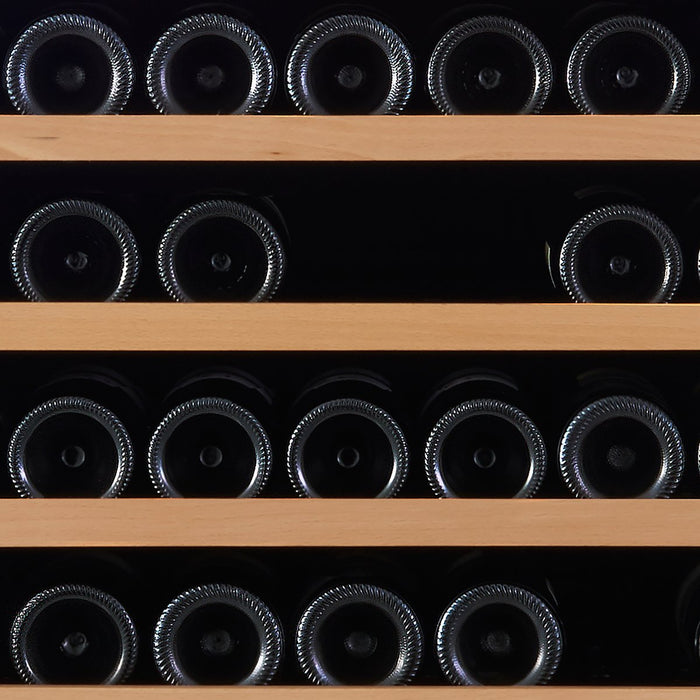

New innovative shelving design comfortably accommodates every size bottle in your collection. Luxury spacing between shelves ensures easy access and proper protection for your bottles and labels.
3-STAGE LIGHTING
Soft white LEDs safely illuminates your bottles, showcasing your wine in style.
CONTINUOUS FRESH AIR, ELIMINATES ODORS
Charcoal filter (included) maintains proper humidity and ensures that fresh air circulates throughout the cabinet.
BUILT-IN OR FREE STANDING
Place in any room in your home freestanding or built into cabinetry.
LIBRARY QUIET
The innovative technology keeps noise to a minimum while also ensuring exact performance,energy efficiency and quiet operation.
Ultra-Efficient Cooling Technology
Equipped with the highest quality Embraco compressor technology, for years of dependable service.
3-Year Warranty of the sealed cooling system
*Maximum bottle capacity may vary depending on bottle size and shelf configuration
Specifications
User Manual
Product Sheet
DIMENSIONS AND CAPACITY
Max. Bottle Capacity | 168 |
Unit Height (Inches) | 72 |
Unit Width (Inches) | 26 |
Unit Depth (Inches) | 27.5 |
Unit Depth with Handle (Inches) | 29 |
Volume (Cu. Ft.) | 17.3 |
Unit Weight (Lbs.) | 330 |
COOLING FEATURES
Venting location | Front |
Type of Cooling | Compressor |
Refrigerant | R600a |
Temperature Range | 41° - 66°F (Both Zones) |
Temperature Variance | ±4° |
Ambient Temperature Range | 60° to 80° F |
Temperature Control Type | Electrostatic Touchscreen |
DBA Rating | 39 |
Charcoal Filter | Yes |
DOOR FEATURES
Door Style(s) | Seamless Stainless Steel Trim Glass |
Glass Panes | 2 |
UV Protection | N |
Tinting | N |
Door Handle Style | Stainless Steel Towel Bar |
Reversible Door | Y |
Lock & Key | Y |
ADDITIONAL FEATURES
Accessories Included | Manual, Keys, 2 Extra Legs, U/L Left Side Hinge, Door Install Fittings |
Warranty | 1 Year Parts & Labor, 3-Years Sealed System (Parts Only) |
Shipping Weight (Lbs.) | 356 |
Safety Certifications | TUV |
SHELVING FEATURES
Shelving Style | Rolling |
Shelving Material | A3 Steel Powder Coated Metal Plate with Silicone Bottle Supports |
Shelf Front Trim(s) | Non VOC Natural Wood |
Shelf Extension (%) | 75 |
Distance between Shelves (Inches) | 4 |
Total Shelves Included | 12 Metal Plate, 2 Wire Racks |
STYLE FEATURES
Display Color | White |
Grill Color | Silver |
Cabinet Material and Color | Black Steel |
Interior lighting | Top Mounted White LEDS |
Interior Liner | Molded Polystyrene |
CUT OUT DIMENSIONS AND INSTALL
Cut Out Height x Width x Depth (Inches) | 72.5 x 27 x 29.5 |
Installation Type | Free Standing/Built-In |
Electrical Requirement (v/hz) | 115V/60HZ |
Plug Type | Right Angle NEMA 5-15P Plug with SJT 3X18AWG Cord |
Power Cord Length (inches) | 70.8 |
Power Cord Location | Rear Bottom Left Side |
Start-Up Amps | 8.3A |
Running Amps | 2.3A |
Leveling Legs (Qty) | 4 |
A Note About Bottle Sizes and Storage Capacity

When we reference bottle capacity for our wine cellars, we are referring to the maximum quantity of "standard" Bordeaux-size bottles that will fit into that cellar. In reality, as you can see from the chart above, there is no true standard size bottle these days as bottles come in varying styles, sizes and shapes. Some are extremely tall and thin (like a Riesling bottle), others are shorter yet wide at the shoulders (like the Pinot Noir or Turley bottle) and others are tall, wide and broad at the shoulders (like your large California red bottle). If you have any of these non "standard" Bordeaux size bottles in your collection, your capacity can be lower than what we state the unit can hold.
Here is our rule of thumb: If up to half of your collection consists of non-standard Bordeaux-size bottles, your maximum capacity may be reduced by 20-25%. If your collection consists mostly of these larger sized bottles, your maximum capacity may be reduced by as much as 40%. The one thing we do know is that all collections are different, and that's the great thing about collecting wine!
