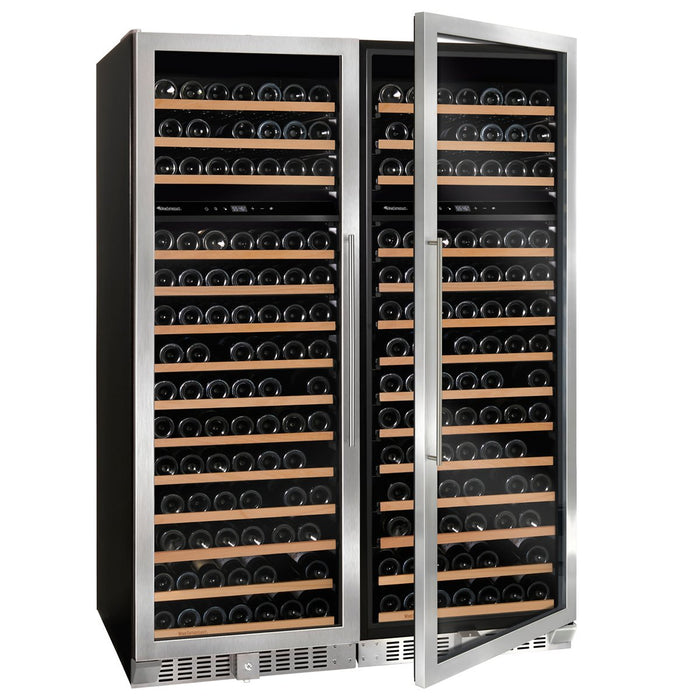

Introducing Dual Zone MAX, our most flexible Dual Zone wine cellar.
Dual Zone MAX technology gives you the ability to set both temperature zones to the same temp allowing you to MAXimize your storage & aging space. Or use your Dual Zone MAX as a traditional Dual Zone cellar. Our innovative 80/20 split Dual Zone MAX give you the MAXimum space to store & age your collection while the top zone can be set to the perfect service temperature for your white, rosé & sparkling wines.
Sleek Design & State of the art cooling technology
Elegant Design Style – Natural wood trim shelving to pair with the seamless stainless steel door.
Touchscreen Controls – The electrostatic touchscreen allows you to accurately control temperature settings and lighting.
Ultra-Efficient Cooling Technology – Consistent temperatures, energy efficiency and library quiet performance. The N’FINITY SD Dual Zone wine cellar is equipped with the highest quality Embraco compressor technology, for years of dependable service and performance.
PERFECT FOR STORAGE AND SERVICE
Ideal for serving and storing your favorite red, white and sparkling wines
DIGITAL CLIMATE CONTROL
Intuitive touchscreen controls to easily set desired temperatures
- Dual Evaporator Upper and Lower Zones: 41 F – 66 F
EQUIPPED WITH ADVANCED COOLING TECHNOLOGY
Consistent, stable temperature throughout your cellar
- Quieter then comparable units, runs on a low continuous cycle
- Energy-efficient performance, reduced annual costs of consumption
MAXIMUM STORAGE CAPACITY

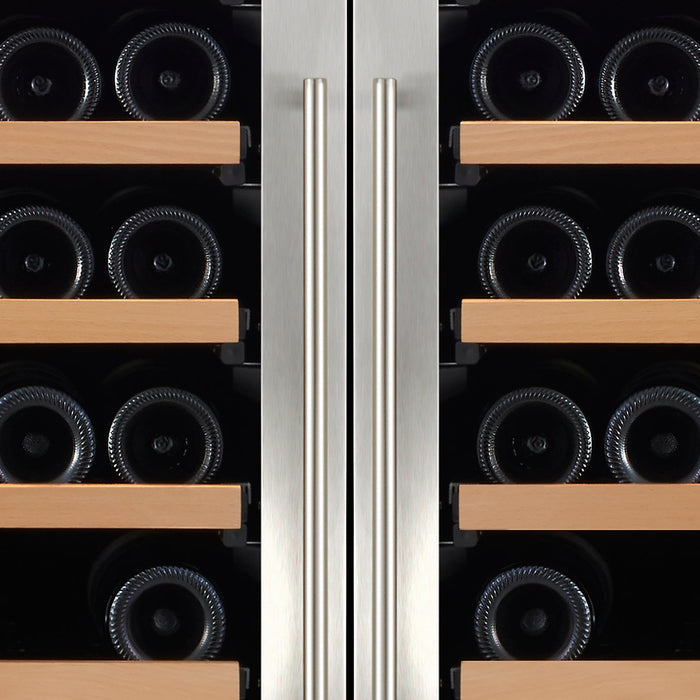

New innovative shelving design comfortably accommodates every size bottle in your collection. Smart spacing between shelves ensures easy access and proper
Soft white LEDs safely illuminates your bottles, showcasing your wine in style.
CONTINUOUS FRESH AIR, ELIMINATES ODORS
Charcoal filter (included) maintains proper humidity and ensures that fresh air circulates throughout the cabinet.
BUILT-IN OR FREE STANDING
Place in any room in your home freestanding or built into cabinetry.
The innovative technology keeps noise to a minimum while also ensuring exact performance, energy efficiency and quiet operation.
CONTINUAL FRESH AIR FLOW
Charcoal filter (included) ensures that fresh air circulates throughout the cabinet and assists in maintaining proper humidity.
Saves money by reducing energy consumption without sacrificing performance.
DIMENSIONS AND CAPACITY
|Max. Bottle Capacity||168|
|Unit Height (Inches)||72|
|Unit Width (Inches)||52|
|Unit Depth (Inches)||27.5|
|Unit Depth with Handle (Inches)||29|
|Volume (Cu. Ft.)||17.3|
|Unit Weight (Lbs.)||330|
|Type of Cooling||Compressor|
|Temperature Range||Upper Zone (41° - 54°F), Lower Zone (54° - 66°F)|
|Temperature Control Type||Electrostatic Touchscreen|
|Door Style(s)||Seamless Stainless Steel Trim Glass|
|Door Handle Style||Stainless Steel Towel Bar|
|Lock & Key||Y|
|Accessories Included||Manual, Keys, 2 Extra Legs, U/L Left Side Hinge, Door Install Fittings|
|Warranty||1 Year Parts & Labor, 3-Years Sealed System (Parts Only)|
|Shipping Weight (Lbs.)||330|
|Shelving Material||A3 Steel Powder Coated Metal Plate with Silicone Bottle Supports|
|Shelf Front Trim(s)||Non VOC Natural Wood or Black Wood|
|Shelf Extension (%)||85|
|Distance between Shelves (Inches)||4|
|Total Shelves Included||12 Metal Plate, 2 Wire Racks|
|Grill Color||Silver (Stainless Steel Door), Black (Full Glass Door)|
|Cabinet Material and Color||Black Steel|
|Interior lighting||Top Mounted White LEDS|
|Interior Liner||Molded Polystyrene|
CUT OUT DIMENSIONS AND INSTALL
|Cut Out Height x Width x Depth (Inches)||72.5 x 53 x 29.5|
|Installation Type||Free Standing/Built-In|
|Electrical Requirement (v/hz)||115V/60HZ|
|Plug Type||2 - Right Angle NEMA 5-15P Plug with SJT 3X18AWG Cord|
|Power Cord Length (inches)||70.8|
|Power Cord Location||Rear Bottom Left Side|
|Leveling Legs (Qty)||4|
A Note About Bottle Sizes and Storage Capacity
When we reference bottle capacity for our wine cellars, we are referring to the maximum quantity of "standard" Bordeaux-size bottles that will fit into that cellar. In reality, as you can see from the chart above, there is no true standard size bottle these days as bottles come in varying styles, sizes and shapes. Some are extremely tall and thin (like a Riesling bottle), others are shorter yet wide at the shoulders (like the Pinot Noir or Turley bottle) and others are tall, wide and broad at the shoulders (like your large California red bottle). If you have any of these non "standard" Bordeaux size bottles in your collection, your capacity can be lower than what we state the unit can hold.
Here is our rule of thumb: If up to half of your collection consists of non-standard Bordeaux-size bottles, your maximum capacity may be reduced by 20-25%. If your collection consists mostly of these larger sized bottles, your maximum capacity may be reduced by as much as 40%. The one thing we do know is that all collections are different, and that's the great thing about collecting wine!
